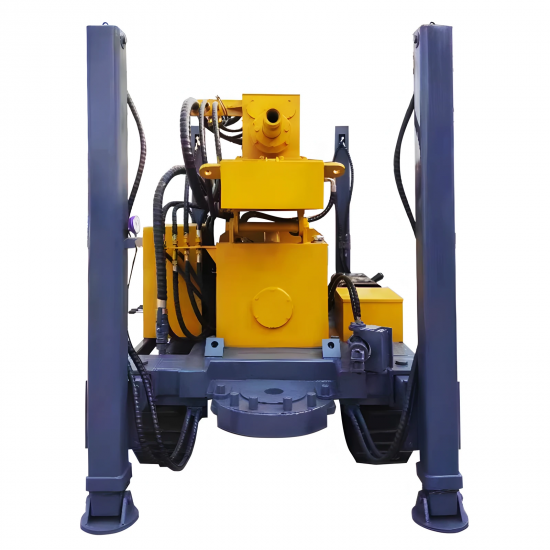

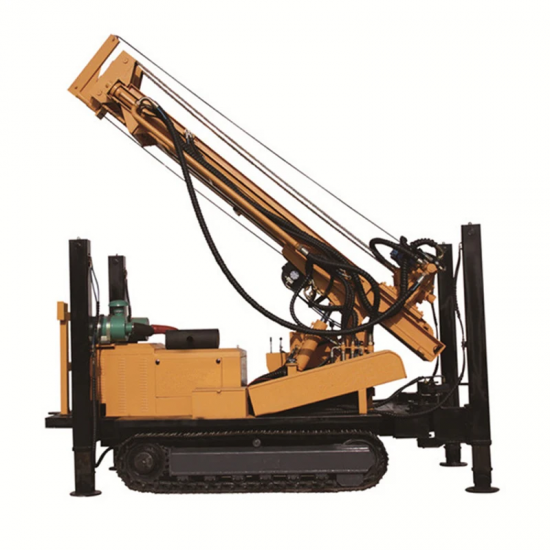

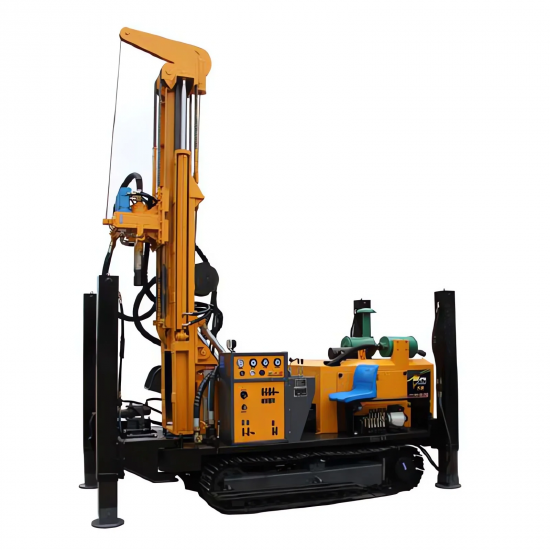

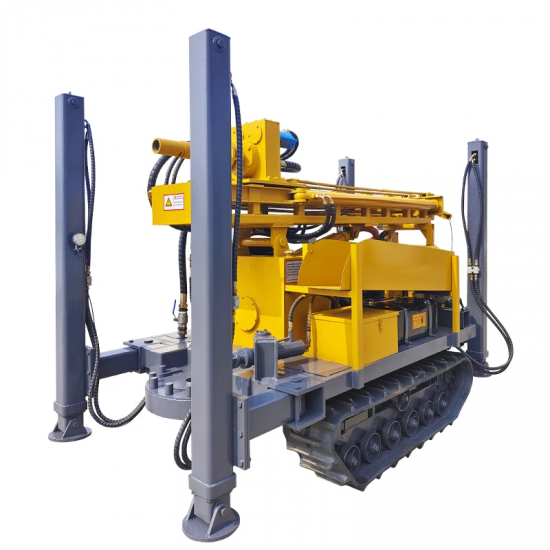

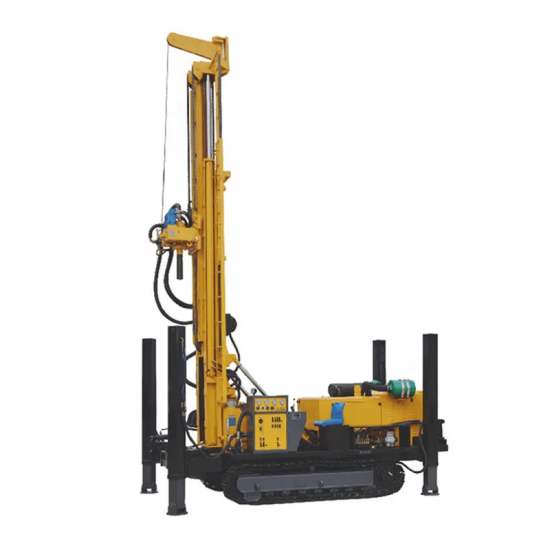

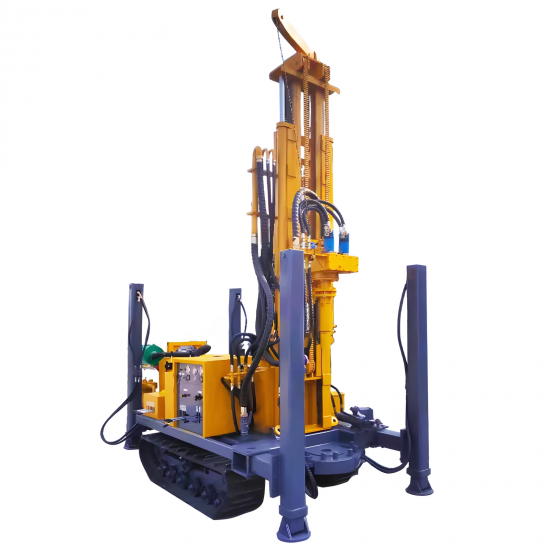

2025100m Cheap Water Well Drilling Machine 200m Truck Mounted Water Well Drilling Rig
All products are duty-free for the United States.
Pneumatic 100-500m Water Well Drilling Machine With Air Compressor
Specification
|
Model
|
YGF-180
|
YGF-200
|
YGF-260
|
YGF-300
|
||||
|
Weight (Ton)
|
4.5
|
5
|
6.5
|
7.2
|
||||
|
Drilling Diameter (mm)
|
140~254
|
140~254
|
140~305
|
140~325
|
||||
|
Drilling Depth (m)
|
180
|
200
|
260
|
300
|
||||
|
Walking Speed (Km/h)
|
2.5
|
2.5
|
2.5
|
2.5
|
||||
|
Climbing Angles (°)
|
30
|
30
|
30
|
30
|
||||
|
Equipped capacitor (Kw)
|
55
|
65
|
70
|
85
|
||||
|
Using Air Pressure (Mpa)
|
1.7~2.5
|
1.7~3.0
|
1.7~3.0
|
1.7~3.0
|
||||
|
Air Consumption (m³/Min)
|
17~31
|
17~31
|
17~31
|
17~36
|
||||
|
Drilling Pipe Length (M)
|
1.5/2/3
|
1.5/2/3
|
1.5/2/3
|
1.5/2/3
|
||||
|
Rig Lifting Force (T)
|
12
|
13
|
20
|
24
|
||||
|
Swing torque (N.m)
|
3200-4600
|
3400-4700
|
4000-5300
|
5700-7500
|
||||
|
Swing speed (rpm)
|
45-70
|
45-70
|
45-70
|
45-70
|
||||
|
Dimension (mm)
|
3950*1630
*2250
|
3950*1750
*2250
|
4000*1850
*2300
|
4100*2000
*2500
|
||||
Product Description
YG made deep water well drilling rig used newest model & advanced hydro technology, with high torque hydraulic motor rotation and large cylinder hydraulic cylinder advancement.
Our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil usage water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, shallow layer of shale gas.Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, rigs have received the real market validation as the majority of our customer’s positive feedback.
Feature
1.Hydraulic oil pump; parallel transmission design (patent) oil pump single body, power supply adequate distribution reasonable,
hydraulic system unique design, simple maintenance cost small.
2.Used with air compressor, can drill 180M, 200M, 300M, 400M, 500M ,600M, 800M, etc.
3.Usually drilling diameter is 6‘’, 8'', 10'', 12'', 14'',etc. According to your needs, we can configure the suitable drill pipe, drill bit and the right model.
4. Power head device; gearbox casting, double motor power supply, torque, durability, maintenance costs are small.
5. Drilling rig chassis; Professional excavator chassis, durable, heavy load bearing, wide chain board, little damage to hard road surface.
Our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil usage water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, shallow layer of shale gas.Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, rigs have received the real market validation as the majority of our customer’s positive feedback.
Feature
1.Hydraulic oil pump; parallel transmission design (patent) oil pump single body, power supply adequate distribution reasonable,
hydraulic system unique design, simple maintenance cost small.
2.Used with air compressor, can drill 180M, 200M, 300M, 400M, 500M ,600M, 800M, etc.
3.Usually drilling diameter is 6‘’, 8'', 10'', 12'', 14'',etc. According to your needs, we can configure the suitable drill pipe, drill bit and the right model.
4. Power head device; gearbox casting, double motor power supply, torque, durability, maintenance costs are small.
5. Drilling rig chassis; Professional excavator chassis, durable, heavy load bearing, wide chain board, little damage to hard road surface.
Details Images
Pneumatic Water Well Drill Rig
Professional excavator chassis, durable, heavy load bearing, wide chain board, little damage to hard road surface.
More efficienc, low failure rate, economic and durable
Used with air compressor, depth up to 800 meters.
Power head device; gearbox casting, double motor power supply, torque, durability, low maintenance costs.
More efficienc, low failure rate, economic and durable
Used with air compressor, depth up to 800 meters.
Power head device; gearbox casting, double motor power supply, torque, durability, low maintenance costs.
Air Compressor
Optional equipment
Mud Pump
Optional equipment
Drilling Rod
Determined according to the size of the hole
Hammer
Determined according to the size of the hole
DTH Drilling Bit
Determined according to the size of the hole
Open Hole Bit
Determined according to the size of the hole
Packing & Delivery
Company Profile
FAQ
- Stock: In Stock
- Model: 2025100m Cheap Water Well Drilling Machine 200m Truck Mounted Wa
0 samples sold
$44,802.66
