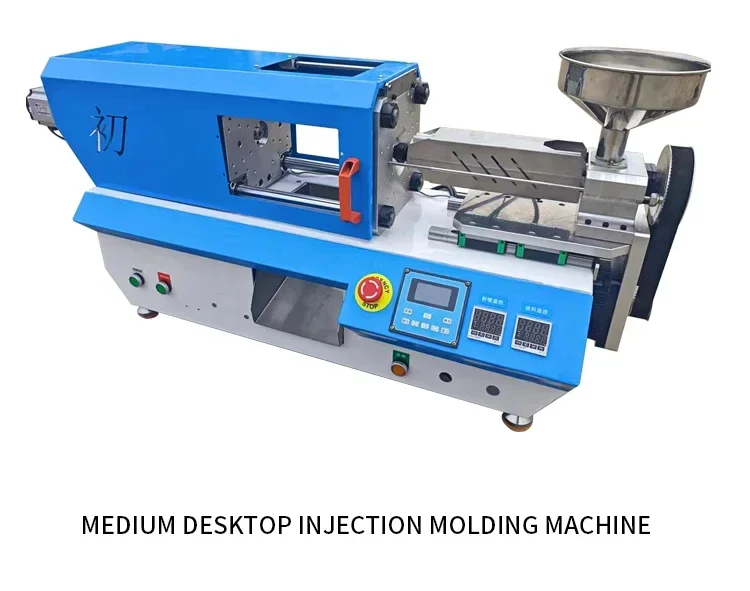

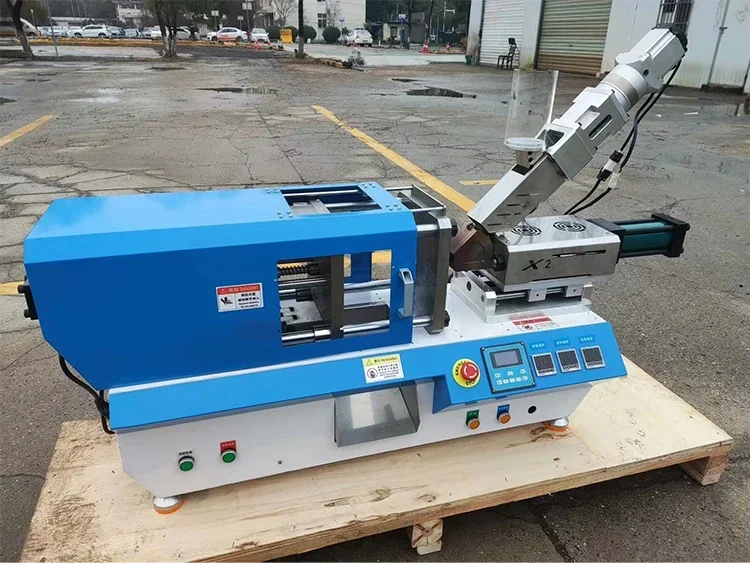

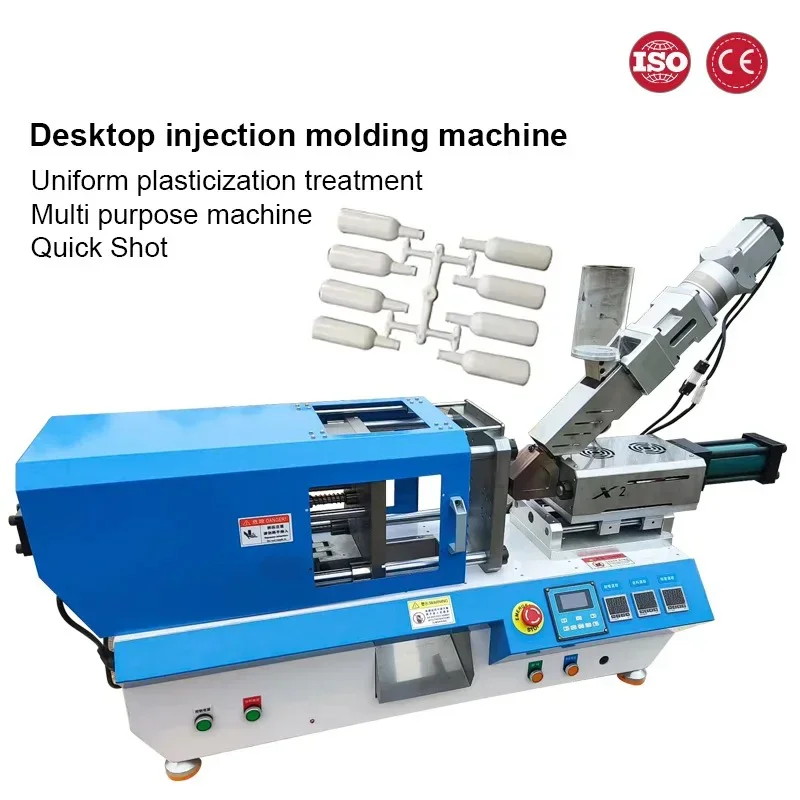

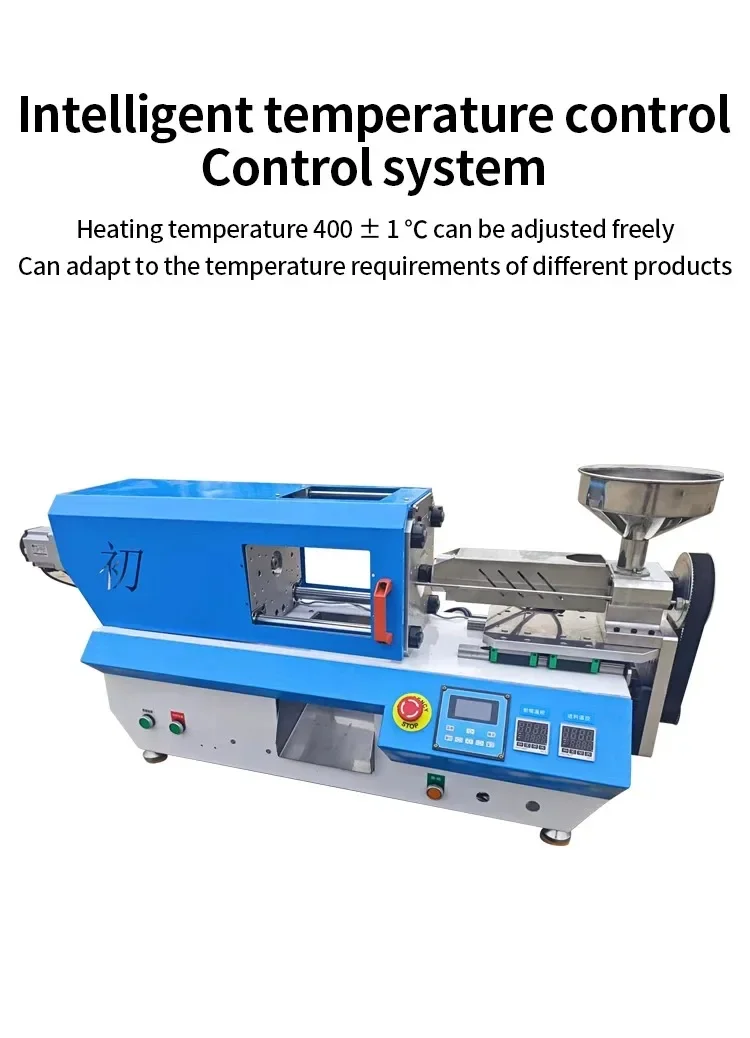

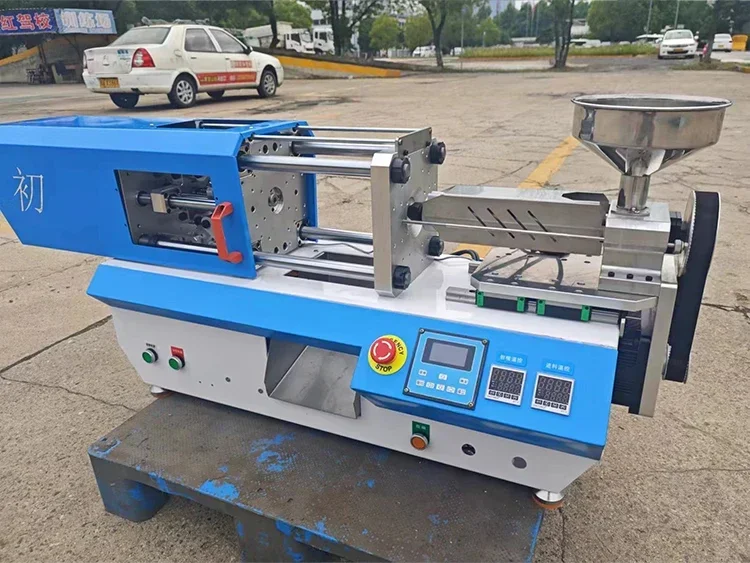

ZTEN Laboratory-Use Injection Molding Machine 35g Horizontal Injection Molding Laboratory Sample Production of Microplastic Part

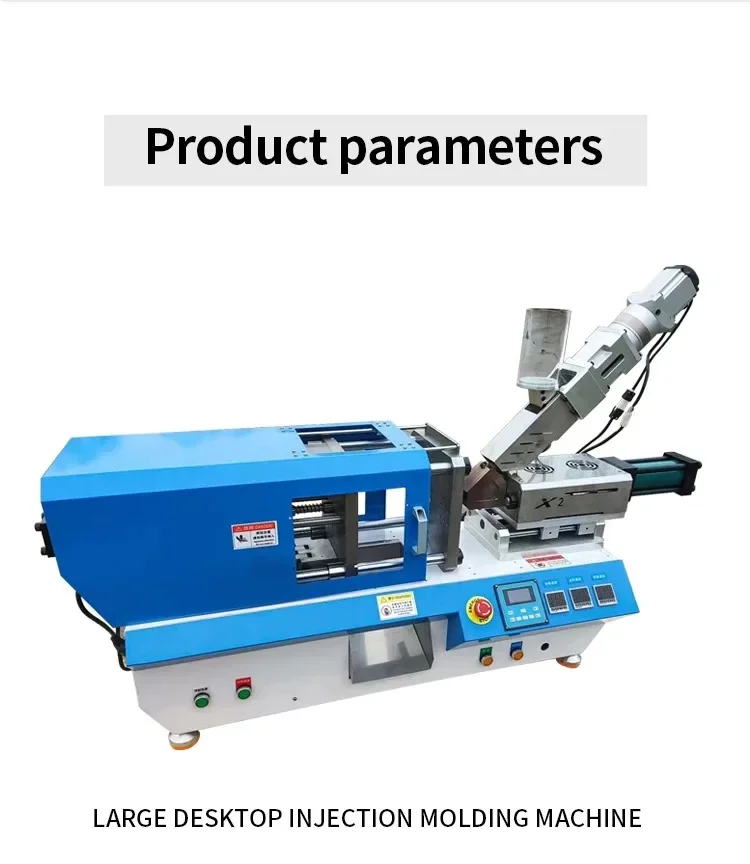

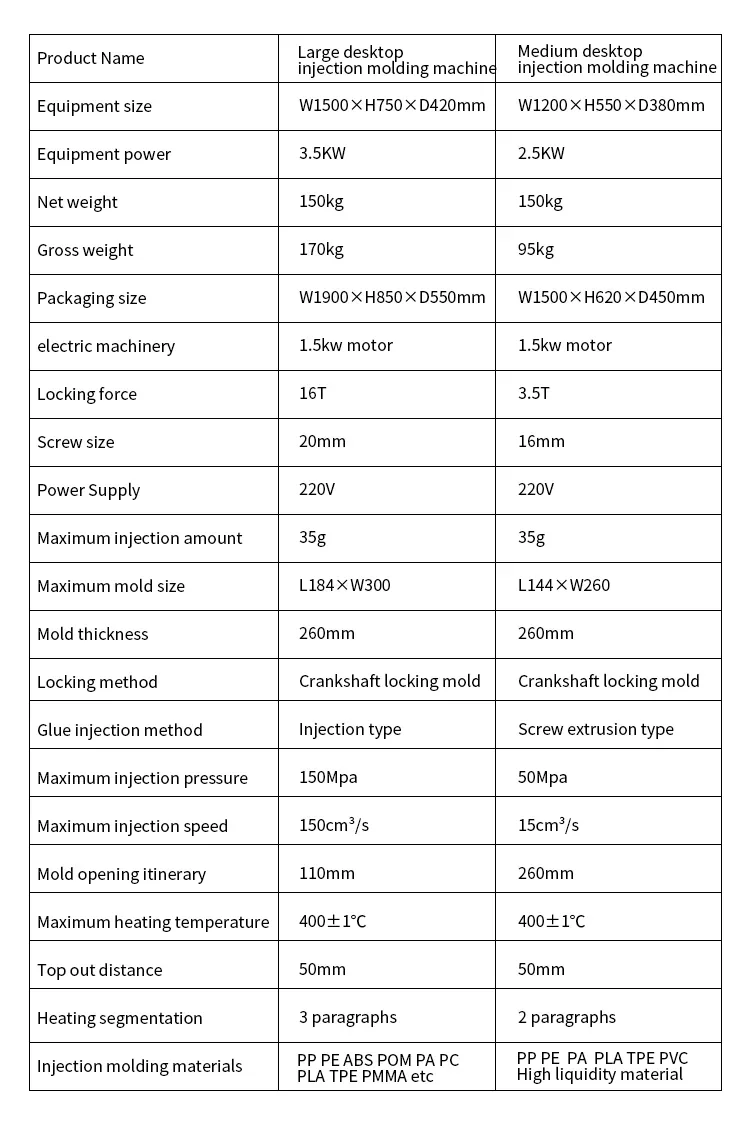

Product parameters
Voltage: 220V/110V (optional)
Maximum output: 35g
Maximum movement distance of mold base: 100mm
Maximum opening distance: 360mm
Top rod stroke: 45mm
Diameter of the guide pillar : 25mm
Spacing between the main sliding rods : 210mm
Maximum injection pressure: 3.5T-16T
Maximum mold installation size: 185 * 270mm
Power type: electric clamping, hydraulic injection
Need to be paired with a hydraulic station: above 1500W (hydraulic station not included, need to purchase separately)

Machine size: approximately 110 * 35: * 60cm
Machine weight: approximately 190kg
